Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber

Name: Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber
Brand: Haida
Price: 1 USD

Buy cheap Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber product

Brand Name : Haida

Model Number : HD-E710-2

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

Delivery Time : 20 days after order confirmed

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Spray water pressure : 80~100bar (8000~10000Kpa)

Water flow : 14~16L/min

Spray water distance : 10~15cm

Spray water angle : 0°, 30°, 60°, 90°, each angle spray for 30 seconds

Water spray interval time : 30 seconds (adjustable)

Controller : PLC touch screen

Contact Now

Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber

Product Introduction:

Rain test chamber is suitable for the test of adaptability and reliability of electrical and electronic products, materials and parts under the conditions of rain and temperature.Also can be used for external lighting and signal equipment and automotive lamp enclosure protection.This product adopts scientific design, so that the equipment can simulate the realistic dripping, drenching, splashing, spraying and other environments.The adoption of comprehensive control system and frequency conversion technology makes it possible to automatically adjust the rotation Angle of rainfall sample frame, the swing Angle of water spray pendulum and the swing frequency of water spray.

Standard Features:

Item	Specification
Internal dimension(WDH)	100010001000mm(can be customized)
External dimension(WDH)	150011001700mm

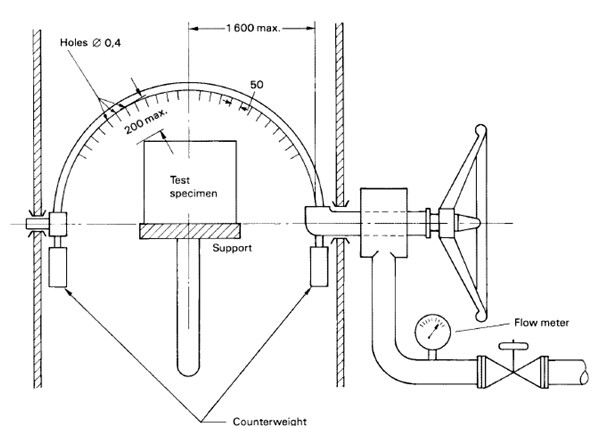

Oscillating tube	Radius 400mm
Oscillating angle	IPX3: spray ±60° from vertical line to each side, total 120° IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed	IPX3: 2120° for 4s IPX4: 2360° for 12s
Spray nozzle	Diameter: 0.4mm, removable Ensure the water sprays in a line and without tolerance
Distance between two nozzles	50mm
Turntable dimension	500mm
Turntable rotation speed	1-3 cycles/min

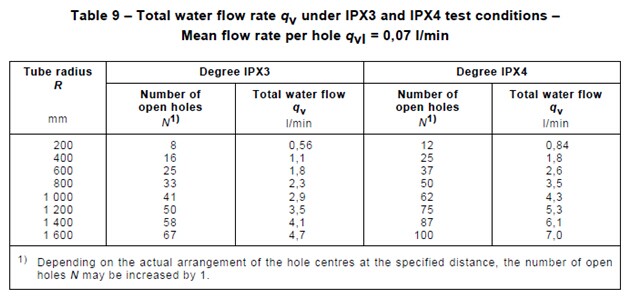

Water flow of each nozzle	0.07 L/min +5%
Test duration	1~999,999min, adjustable
Pressure gauge	80-150Kpa
Material	Chamber - Stainless steel ; Spray nozzle - Brass

Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber
Application & features:
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.

Ipx3 Ipx4 Standard Automatic Salt Spray Corrosion Test Chamber
