PLC Control Suitcase Tester , Luggage Simulation Using Life Testing Machine

Name: PLC Control Suitcase Tester Luggage Simulation Using Life Testing Machine
Brand: HAIDA
Price: 1 USD

Buy cheap PLC Control Suitcase Tester , Luggage Simulation Using Life Testing Machine product

Place of Origin : Guangdong, China (Mainland)

Brand Name : HAIDA

Certification : ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, , SMC, CMC, CPA, CE,CMA,IMC

Model Number : HD-D113-2

MOQ : 1 Set

Price : Negotiable

Packaging Details : ach set protected with resin fiber and PP film, then put into Strong wooden case with operation man

Delivery Time : 20 days after order confirmed

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 300 Sets per Month Haida

product name : Luggage Testing Machine

Test speed : 0～5km/hr, adjustable

Turbulence plate : 5mm/8pcs, unsymmetrized

Contact Now

PLC Control Suitcase Tester , Luggage Simulation Using Life Testing Machine

Specification

Item	Specification
Test speed	0～5km/hr, adjustable, LED display
Time setting	0～99 hours 59 minutes, power off type
Turbulence plate	5mm/8pcs, unsymmetrized
Belt size	490×80cm
Control method	PLC control and touch screen
power	1∮,AC220V/50HZ
Weight	approx. 360kg

Usage

PLC control luggage simulation using life testing machine is use for wheel suitcase, travel bags, baby carries and walking test, etc. PLC control luggage simulation using life testing machine mainly tests the quality of the luggage when walking around. From the test mileage, test speed, we can know the heat rupture of wheel, loss volume of the wheel, any deformation of the integral construction

Theory

PLC control luggage simulation using life testing machine according to the test specification production, Fix the handle of suitcase on the testing hook and tighten with string; then load a certain weight into the suitcase and start the test with setted time and speed, so as to know the performance of wheels and the full structure.

Design Criteria

Design criteria: QB/T 2920-2007

Equipment Instruction

Introduction:

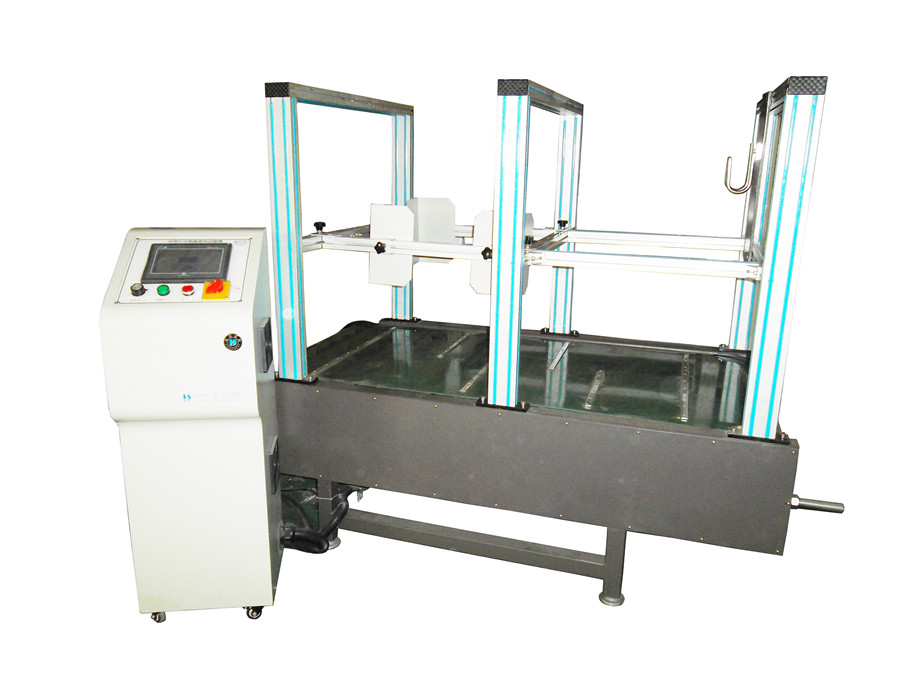

1:control panel 2:control cabinet 3:leather baggage hook 4:test platform

Panel key instruction:

1,Power	Main switch
2,Start	enter the test
3,Stop	stop the test
4,speed control knob	control the speed
5,LCD touch screen	adjust the system in the form of touching

PLC Control Suitcase Tester , Luggage Simulation Using Life Testing Machine
