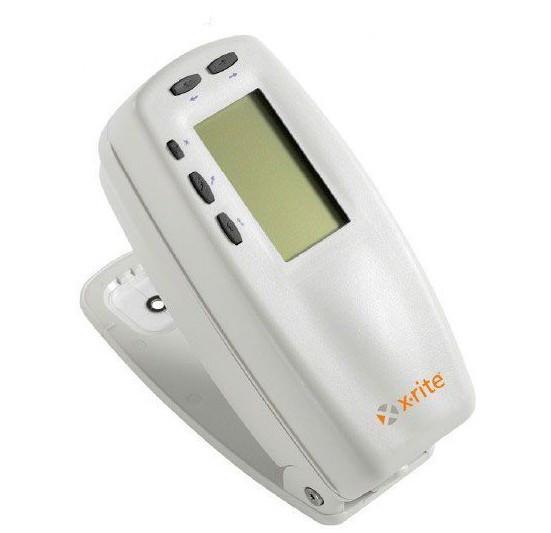

High Accuracy Rubber Testing Machine , Handheld Compact Spectrodensitometer
Production:
HD-X004-1Prepress and pressroom densitometer to accurately measure the density, dot area and dot gain
Brand: X-Rite X-Rite
Features: Suitable for plate-making industry and the use of various types of printing, from prepress to help implement comprehensive color control workshop
Industry and the use of various types of printing plate
Increase the color stability and improve print quality
Spectral measurement sensor technology
Large screen full Chinese display
Simple calibration instructions, sturdy shell to prevent collisions
five models were used to measure the density, density difference, dot size, dot gain, trapping, print contrast, hue error, gray, L * a * b * and L * c * h *, etc., the color comparison, the paper side color and brightness.
Scanning densitometer / spectrometer system
Instant printing production process provides an important information to help reduce makeready time and loss.
Technical parameters
| Measuring geometry 45 ° / 0 ° meet ANSI, DIN & ISO Standards |
| Measuring 6.0mm diameter 3.4mm optional micro pore 1.6mmx3.2mm |
| Inflatable incandescent light pulse, color temperature 2856 ° |
| Spectral range | 400-700nm |
| Standard illuminant | A, C, D50, D55, D65, D75, F2, F7, F11, F12 |
| Standard viewing angle | CIE 2 ° and 10 ° |
| Response mode | T, E, I, A, G, Tx, Ex, Hi-Fi |
| Measuring range | density 0.00D-2.50D reflectivity 0-160% |
| Measuring time single measurement | about 1.4 seconds, fast read mode in about 0.9 seconds continuous measurement |
| Warm-up time | required |
| Repeat Performance | +/- 0.005D 0.00-2.00D; +/- 0.010D 2.00-2.50D |
| Inter-instrument | 0.01D or 1% less than traditional printing 0.40ΔEcmc measuring 12 |
BCRAII Series Swatches
Data storage over 1400 samples (528 and 530)
RS-232 data interface
Rechargeable nickel-hydride rechargeable battery source 4.8V @ 1250mAH
Charging time is about 3 hours use of the environment
Weight 1050 grams (2.3 pounds)
